In the era of software-defined vehicles (SDVs) and hyper-connected fleet ecosystems, commercial vehicle telematics has evolved far beyond basic LBS dot-on-a-map positioning. Modern enterprise telematics hardware demands high-frequency CAN-bus polling, edge-computed driver behavior analytics, multi-network cellular redundancy (4G LTE Cat-1, Cat-M1, NB-IoT with 5G fallback), and stringent hardware cybersecurity compliance. As a premier OEM/ODM Real Time Telematics Manufacturer and Exporter, our engineering framework integrates car-grade microcontrollers (MCU), dual-frequency L1/L5 GNSS positioning engines, and hardware Security Modules (HSM/TPM 2.0) to deliver uncompromised data integrity for global automotive integrators, fleet management software vendors (FMS), and telecom operators.
Our proprietary hardware platform leverages car-grade automotive microcontrollers built on ARM Cortex-M4/M33 architectures, capable of parsing real-time vehicle telemetry at sub-millisecond latencies. By interfacing directly with dual CAN-Bus networks (supporting standard OBD-II ISO 15765, SAE J1939 heavy-duty protocols, and CAN FD high-speed buses), our hardware extracts granular diagnostic trouble codes (DTCs), instantaneous fuel consumption metrics, Electric Vehicle (EV) State of Charge (SOC), State of Health (SOH), and high-resolution wheel speed sensors. This rich telemetry stream is packed into lightweight, encrypted binary payloads (MQTT, CoAP, or custom JT808/Wialon protocols) to minimize SIM data overhead while ensuring instantaneous alert transmission during critical events such as rollover detection, severe impact, or unauthorized geofence egress.
Deep hardware decoding for SAE J1939, J1708, K-Line, ISO 15765, and CAN FD protocols. Real-time extraction of fuel usage, EV battery diagnostics, odometer readings, engine load, and OEM-specific proprietary PID logging.
Designed to meet stringent automotive grade electronics standards. Built-in ISO 7637-2 power surge protection, load dump protection (up to 100V), operational temperature ratings from -40°C to +85°C, and flame-retardant V-0 rating enclosures.

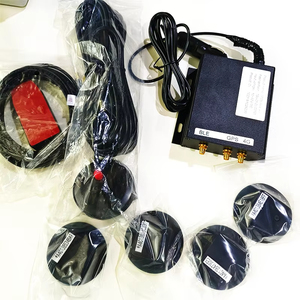

Integrated Bluetooth Low Energy (BLE) gateway supporting concurrent connection to wireless TPMS sensors, temperature and humidity loggers, BLE beacons for driver ID authentication, and wireless door sensors.
Multi-constellation engine supporting GPS, GLONASS, Galileo, and BeiDou. Features dual-frequency L1/L5 band processing and Inertial Navigation (Dead Reckoning with 6-axis MEMS accelerometer & gyroscope) for urban canyon tracking.
Open SDK support for custom C/C++ or embedded Python applications directly on the module. Built-in seamless integration for Wialon, GPS Gate, Traccar, Navixy, JT808, and custom HTTP/TCP/UDP RESTful cloud servers.
Heavy-duty industrial housings designed for construction machinery, trailer tracking, and marine logistics. Fully potted enclosure options resist water immersion, high-pressure washdowns, dust ingress, and severe mechanical vibration.
As enterprise fleet operators prepare for the next decade of digital transformation, hardware procurement criteria are undergoing a massive shift. OEM buyer requirements have transitioned from requesting basic tracking boxes to demanding sophisticated, edge-AI integrated Telematics Control Units. Understanding these macroscopic industry developments is paramount for enterprise procurement managers and product directors:
With cellular carriers globally phasing out legacy 2G/3G networks, hardware procurement must focus on long-lifecycle connectivity. 4G LTE Cat-1 bis has emerged as the premier global benchmark for low-power, medium-bandwidth telematics, offering optimal cost efficiency compared to full Cat-4. Simultaneously, 5G RedCap (Reduced Capability) technology is gaining momentum for high-density automotive deployments requiring ultra-low latency without the thermal footprint of full 5G NR chips.
Traditional telemetry data is increasingly coupled with edge-computed visual AI. Modern telematics devices incorporate dedicated Neural Processing Units (NPUs) running Driver Monitoring Systems (DMS) for fatigue/distraction detection and Advanced Driver Assistance Systems (ADAS) for lane departure and forward collision warnings. Combining video telemetry with CAN-bus data provides fleet insurers with unassailable context surrounding safety incidents.
The global shift toward Electric Commercial Fleets requires telematics hardware engineered specifically for high-voltage architectures. Enterprise procurement now demands native support for reading battery management system (BMS) telemetry, monitoring thermal runaway indicators, calculating accurate remaining dynamic range based on load factor, and managing smart charging protocols (CCS2 / ISO 15118 compliance).
Connected vehicle cybersecurity has shifted from an optional feature to a mandatory regulatory requirement. Telematics exporters must comply with UN ECE R155 (Cybersecurity Management Systems) and R156 (Software Update Management Systems). Hardware solutions must embed Secure Bootloader chips, Hardware Security Modules (HSM), encrypted Firmware Over-The-Air (FOTA) pipelines, and end-to-end TLS 1.3 encryption.
| Technical Dimension | Basic Consumer Tracker | Standard 4G Commercial Tracker | Our OEM/ODM Enterprise Telematics TCU |
|---|---|---|---|
| Cellular Modules | 2G / 3G Single Network | 4G Cat-1 (Global Bands) | 4G Cat-1bis / Cat-M1 / NB-IoT / 5G RedCap Dual-SIM Fallback |
| CAN-Bus Interfacing | None / Basic OBD-II Speed only | Single CAN Channel (Standard OBD) | Dual-Channel CAN FD + J1939 + J1708 + K-Line + OEM Custom PID |
| Positioning Precision | Single GPS L1 (3m - 5m) | Multi-GNSS L1 (2.5m CEP) | Dual-Frequency L1/L5 + RTK Support + Dead Reckoning MEMS (0.5m CEP) |
| Peripheral Connectivity | Digital I/O (1x Input, 1x Output) | RS232, 2x Digital I/O | RS232, RS485 (Modbus RTU), 1-Wire, BLE 5.2 Sensor Hub, 4x Analog I/O |
| Power & Surge Rating | 9V - 36V (Basic fuse) | 9V - 36V (Overvoltage protection) | 8V - 100V Continuous, ISO 7637-2 Pulse 1/2a/3a/3b, 100V Load Dump Shield |
| Hardware Security | Unencrypted firmware | AES-128 Protocol Encryption | Hardware TPM 2.0 / HSM Module, Secure Boot, FOTA TLS 1.3 Signature |
| Customization Level | Fixed Firmware Config | Basic Parameter Tweaking | Full White-Label OEM/ODM: Schematic, Mold, Firmware SDK, Protocol API |
Delivering enterprise telematics hardware requires meticulous quality control, agile prototyping, and stringent automotive manufacturing standards. Our ISO 9001 and IATF 16949 certified manufacturing infrastructure guarantees a seamless engineering path from initial concept to global volume shipment:
Architectural requirement mapping, micro-controller pin selection, MCU/Cellular module validation, hardware I/O definition, and enclosure layout budgeting.
Multi-layer PCB layout design, impedance matching for RF antennas, prototype SMT assembly, automated optical inspection (AOI), and signal integrity testing.
BSP development, protocol conversion engine (JT808, MQTT, custom REST), CAN bus PID library compilation, and power consumption optimization.
Comprehensive testing for CE, FCC, RoHS, PTCRB, E-Mark (E13), IP67 waterproofing, thermal shock chambers, and vibration table testing.
High-speed SMT lines, automated ICT/FCT testing, customized laser etching, white-label packaging, and global logistics distribution.
Navigating global supply chain volatility while maintaining cutting-edge hardware design requires a dependable manufacturing partner. Operating modern high-speed SMT assembly lines, automated optical inspection systems, and environmental reliability testing labs, we deliver world-class enterprise telematics hardware with scalable cost efficiencies.
Every device undergoes 100% automated In-Circuit Testing (ICT), Functional Circuit Testing (FCT), 24-hour high-temperature burn-in chambers, and RF power calibration before leaving our production facility.
Long-term strategic component sourcing contracts with Tier-1 semiconductor suppliers (STMicroelectronics, Quectel, Nordic, u-blox) guarantee component availability and shield our enterprise clients from chip shortage disruptions.
From pre-sales architectural consultation to post-deployment FOTA management, our dedicated team of embedded hardware software engineers provides direct technical support to ensure fleet success.
