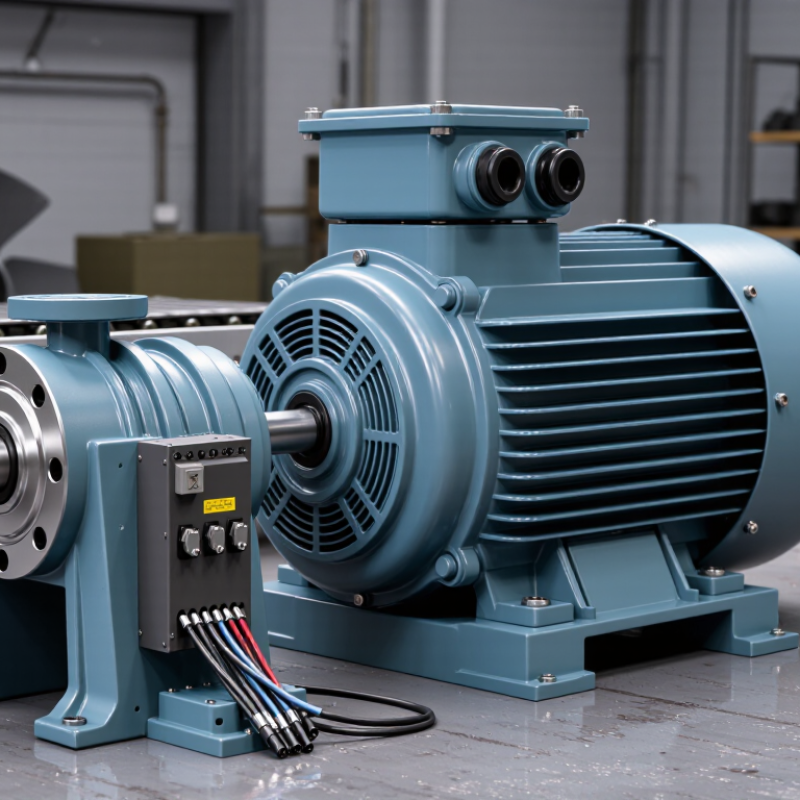

How to Choose the Right 22 kW Electric Motor?
Table of Contents [Hide]
1 Understanding the Main Specifications of a 22 kW Electric Motor
2 Matching Motor Power, Speed, Torque, and Voltage to the Application
3 Selecting the Right Motor Type, Efficiency Class, and Protection Rating
4 Checking Installation Conditions, Control Methods, and Maintenance Needs
5 Comparing Suppliers, Total Costs, Standards, and Safety Requirements

Understanding the Main Specifications of a 22 kW Electric Motor

A 22 kW electric motor delivers about 22,000 watts of mechanical power under rated conditions. That figure alone is not enough. Check rated voltage, frequency, phase, speed, torque, efficiency, power factor, and operating duty. At 400 V, three-phase operation, a typical motor may draw roughly 42–45 A, depending on efficiency and power factor. Always verify the manufacturer’s nameplate data.

Speed changes torque requirements. A 1,500 rpm motor produces approximately 140 Nm at full load, while a 3,000 rpm model produces about 70 Nm. The choice depends on the driven pump, fan, compressor, or conveyor. IEC 60034-30-1 defines efficiency classes such as IE3 and IE4. The International Energy Agency reports that motor-driven systems consume close to half of global electricity, so small efficiency gains can matter over long operating hours.

Look for S1 continuous-duty rating, suitable insulation, and an IP protection level matched to dust and moisture. Class F insulation is common, but the actual temperature rise deserves attention. A neat specification sheet can still mislead. Cable length, ambient heat, starting current, and variable-speed operation may change performance. The U.S. Department of Energy notes that motor systems can represent roughly 60%–70% of industrial electricity use. That estimate is useful, although site conditions vary. I would also question an IE4 upgrade if the motor rarely runs; purchase cost and payback need checking.

How to Choose the Right 22 kW Electric Motor?

Understanding the Main Specifications of a 22 kW Electric Motor

A 22 kW motor delivers approximately 22 kW of mechanical output at its rated load. The chart below shows the estimated full-load current at common three-phase supply voltages. The values use a typical motor efficiency of 90% and a power factor of 0.85.

How to read the chart: Higher supply voltages require lower current for the same 22 kW output. When selecting a motor, also check rated voltage, frequency, speed, efficiency, power factor, starting method, enclosure protection, insulation class, and the required duty cycle.

Matching Motor Power, Speed, Torque, and Voltage to the Application

A 22 kW electric motor should be selected from the machine’s real workload, not power rating alone. A conveyor, pump, and compressor may require different torque profiles. Check the required running torque, starting torque, operating hours, and load changes. A motor that looks suitable on paper may overheat during frequent starts.

Speed directly changes available torque. The basic relationship is T = 9550P/n, where torque is measured in newton-metres, power in kilowatts, and speed in revolutions per minute. At 1,500 rpm, a 22 kW motor produces about 140 Nm. At 3,000 rpm, it produces about 70 Nm. Gear reduction can increase shaft torque, but losses must be included. Do not size from nominal speed alone.

Voltage and frequency must match the site supply and control equipment. Confirm phase configuration, voltage tolerance, starting current, and inverter compatibility. A variable-speed drive may improve control, but low-speed cooling can become inadequate. I have seen selection errors caused by ignoring ambient temperature, altitude, enclosure, and duty cycle. Check the nameplate, efficiency data, and overload requirements with a qualified engineer. Leave practical margin, but avoid excessive oversizing; it can reduce efficiency and worsen control. The “perfect” choice is rarely perfect. Recheck the assumptions.

Selecting the Right Motor Type, Efficiency Class, and Protection Rating

Choosing a 22 kW motor starts with the load, not the nameplate. Confirm torque, speed, duty cycle, starts per hour, and driven inertia. A pump may need steady torque. A conveyor may demand high breakaway torque. IEC 60034-1 defines duty classifications, including continuous S1 and intermittent duties. The wrong duty can cause heat buildup, even when rated power looks sufficient.

For efficiency, compare IE classes under IEC 60034-30-1. Check performance at actual operating points. A 22 kW motor commonly fits IE3 or IE4 specifications. The European Commission’s Ecodesign Regulation 2019/1781 requires IE3 motors from 0.75 to 1,000 kW in covered applications, with defined exceptions. The U.S. Department of Energy’s Industrial Motor Systems Market Opportunities Assessment reports that motor-driven systems consume more than half of industrial electricity. Small efficiency gains matter. However, oversizing can erase them through poor load factor. I would not choose IE4 automatically. Payback depends on annual operating hours.

Tips: Match the IP rating to the environment. IP55 suits many dusty, splash-prone areas, while washdown zones may need stronger sealing. Verify the second digit against real water exposure. Check ambient temperature, altitude, mounting position, and cable glands. Field inspections often find blocked cooling passages, loose terminals, or incorrect overload settings. These details seem minor. They can shorten motor life. Ask for efficiency test data, tolerances, sound levels, and a clear protection plan before ordering.

Checking Installation Conditions, Control Methods, and Maintenance Needs

How to Choose the Right 22 kW Electric Motor?

A 22 kW electric motor needs more than the correct power rating. Check the supply voltage, frequency, phase arrangement, and available starting current. Measure the installation area before ordering. The motor should fit without stressing the coupling, base, or shaft. Allow space for cooling air and routine inspection. Dust, moisture, heat, and corrosive vapors may require a suitable enclosure rating. In my experience, poor ventilation causes trouble before electrical failure appears. A clean-looking room can still hold damaging fine dust.

The driven machine determines the control method. Direct starting may suit a strong electrical system and a stable load. However, high starting current can disturb nearby equipment. A soft starter can reduce mechanical shock during acceleration. A variable frequency drive offers better speed control, but it needs correct motor settings and cable selection. Keep control cables away from power cables where practical. Add overload protection and temperature monitoring when the duty cycle is demanding. Small errors matter.

Maintenance planning should begin before installation. Record vibration, current, bearing temperature, and unusual noise during normal operation. Compare these readings over time, not just against a single limit. Inspect terminals for looseness and check alignment after the first operating period. Lubrication intervals depend on speed, load, bearing design, and environment. Do not copy a generic schedule without verification. I have seen maintenance plans fail because operators recorded data but never reviewed trends. A checklist is useful, yet it cannot replace careful judgment.

Comparing Suppliers, Total Costs, Standards, and Safety Requirements

Choosing a 22 kW electric motor involves more than comparing purchase prices. The supplier should provide clear efficiency data, test reports, dimensional drawings, warranty terms, and realistic delivery dates. Ask whether spare parts and technical support remain available after installation. A low quotation can hide expensive delays.

Calculate the total cost over the motor’s working life. Include freight, cables, starters or drives, installation, energy use, routine maintenance, and possible production downtime. Efficiency matters because a motor running many hours can consume far more money than its purchase price. Check the motor’s duty cycle, load profile, ambient temperature, altitude, and starting method. These details affect the actual operating cost.

Standards also require careful verification. Check applicable IEC requirements, local electrical codes, efficiency regulations, and machinery safety rules. Confirm the enclosure rating, earthing arrangement, insulation class, thermal protection, overload protection, and emergency isolation. If a variable-frequency drive is used, verify compatibility with the motor insulation and bearings. During commissioning, measure vibration, current balance, temperature, and rotation direction. Small errors matter.

My early cost estimates often missed downtime and cable upgrades. That mistake changed how I compare suppliers. A factory test certificate helps, but it does not replace an on-site inspection. Have a qualified engineer review the selection before approval.

How to Choose the Right 22 kW Electric Motor? Comparing Suppliers, Total Costs, Standards, and Safety Requirements
Evaluation Area Specification or Supplier Profile Representative Data for a 22 kW Motor Why It Matters Recommended Decision
1. Standard Application Assumptions
Motor rating Continuous-duty industrial motor 22 kW output, S1 duty, three-phase induction motor The motor must provide sufficient continuous power without overheating during the intended operating cycle. Use the motor nameplate rating as the minimum continuous requirement and allow an engineering margin where load peaks are expected.
Typical electrical supply Low-voltage industrial supply 400 V, 50 Hz, three-phase; voltage tolerance and frequency must be verified locally Voltage and frequency affect current, torque, speed, temperature rise, and compatibility with the starter or variable-frequency drive. Match the motor winding configuration to the actual site supply and starting method.
Speed configuration Four-pole motor Approximately 1,475 rpm at 50 Hz under rated load; actual speed varies with slip Speed determines pump flow, fan performance, conveyor speed, gearbox ratio, and mechanical loading. Choose the pole count and final speed based on the driven equipment, not only the motor power.
Environmental protection General industrial enclosure IP55 is a common minimum for indoor industrial applications; higher protection may be required outdoors or in washdown areas Ingress protection reduces the risk of damage from dust and water. IP ratings do not automatically indicate corrosion resistance or suitability for high-pressure washdown. Specify the required IP rating, ambient temperature, altitude, humidity, and chemical exposure before requesting quotations.
Mounting arrangement Foot-mounted or flange-mounted Common IEC mounting designations include B3, B5, and B35 Incorrect mounting dimensions can require adapters, increase alignment work, or prevent installation. Confirm shaft height, frame size, shaft diameter, keyway, bolt pattern, and available installation space.
2. Anonymous Supplier Comparison
Supplier profile A Lowest-cost standard supplier IE3 efficiency class; IP55; standard 400 V / 50 Hz configuration; indicative purchase price: US$1,400–1,800; typical lead time: 2–5 weeks Usually attractive for standard indoor applications, but options, documentation, spare parts, and technical support may be limited. Suitable when the motor is a direct replacement and the application has moderate operating hours.
Supplier profile B Efficiency-focused industrial supplier IE4 efficiency class; IP55 or IP66 option; indicative purchase price: US$1,900–2,700; typical lead time: 3–7 weeks Higher initial cost can be offset by lower electrical losses, especially in applications operating for many hours per year. Preferred for pumps, fans, compressors, and conveyors with high annual running hours.
Supplier profile C Configured project supplier IE3 or IE4; customized voltage, mounting, brake, encoder, thermistors, or drive compatibility; indicative purchase price: US$2,400–3,600; typical lead time: 6–12 weeks Provides better application matching and documentation but normally involves a higher purchase price and longer delivery time. Use for engineered systems, difficult environments, frequent starts, or strict documentation requirements.
Supplier profile D Regional service-oriented supplier IE3 or IE4 depending on stock; indicative purchase price: US$1,700–2,600; typical lead time: 1–3 weeks from local stock Local inventory and service can reduce downtime, freight exposure, and replacement waiting time. Consider when production interruption costs are high and rapid replacement is more important than the lowest purchase price.
Supplier documentation checklist Documents to request from every supplier Technical datasheet, dimensional drawing, efficiency data, loss data, test report, declaration of conformity where applicable, installation instructions, warranty terms, and spare-parts availability Complete documentation allows technical comparison and helps demonstrate compliance during commissioning or audits. Do not compare prices until all suppliers have quoted the same voltage, frequency, mounting, enclosure, efficiency class, and options.
3. Illustrative Five-Year Total Cost of Ownership
Calculation basis Common comparison assumptions 16.5 kW average mechanical load, 6,000 operating hours per year, electricity price: US$0.12/kWh, five-year period, 400 V / 50 Hz supply Total cost depends more on operating hours, load profile, electricity price, and maintenance conditions than on purchase price alone. Replace these assumptions with measured site data before making a final investment decision.
IE3 energy estimate Standard efficiency option Representative efficiency: approximately 92.5%; estimated electrical input: 17.84 kW; estimated annual energy use: 107,040 kWh; estimated five-year energy cost: US$64,224 IE3 is commonly selected for general industrial service and may provide a balanced purchase price and operating cost. Use when annual running hours are moderate or when the application has a limited capital budget.
IE4 energy estimate Premium efficiency option Representative efficiency: approximately 94.5%; estimated electrical input: 17.46 kW; estimated annual energy use: 104,760 kWh; estimated five-year energy cost: US$62,856 Compared with the IE3 example, the estimated energy saving is approximately 2,280 kWh per year, or about US$274 per year at the stated electricity price. IE4 becomes more financially attractive as operating hours and electricity prices increase.
Purchase and delivery Typical non-brand-specific budget ranges Standard IE3 motor: US$1,400–1,800; IE4 motor: US$1,900–2,700; freight, insurance, and handling: commonly US$100–400, depending on location Purchase price alone does not show the effect of efficiency, delivery risk, or local service support. Request a delivered price with duties, accessories, testing, and documentation clearly separated.
Installation and commissioning Replacement or new installation Indicative allowance: US$300–1,000 for mechanical installation, alignment, cable termination, protection checks, and commissioning; actual cost varies substantially by site Alignment errors, inadequate cable sizing, and incorrect protection settings can cause vibration, overheating, or premature failure. Include alignment, insulation resistance testing, rotation checks, overload settings, and vibration baseline measurements.
Five-year maintenance allowance Routine industrial service Indicative allowance: US$500–1,500 over five years, excluding major failures, rewinding, or driven-equipment repairs Maintenance costs depend on bearing type, contamination, lubrication intervals, starts per hour, vibration, and operating temperature. Compare bearing access, lubrication instructions, spare-part pricing, repair network, and warranty response time.
Illustrative five-year total Purchase, delivery, installation, energy, and routine maintenance IE3 example: approximately US$66,424–68,524; IE4 example: approximately US$66,356–68,456 Under the stated assumptions, the IE4 premium may be recovered gradually through energy savings rather than immediately. Calculate payback using the actual load profile and electricity tariff. Do not use the purchase price as the only selection criterion.
4. Applicable Standards and Compliance Checks
Motor performance and rating IEC 60034-1 Rotating electrical machines: rating and performance requirements Provides a recognized basis for rating, temperature rise, duty, tolerance, and performance information. Request confirmation of the applicable edition and the motor's rated-duty data.
Efficiency measurement IEC 60034-2-1 Standard methods for determining losses and efficiency of rotating electrical machines Efficiency values are only comparable when they are measured using the same recognized method. Ask for efficiency at rated load and the stated test method.
Efficiency classification IEC 60034-30-1 Efficiency classes for line-operated AC motors, including IE3 and IE4 IE classification enables a more consistent comparison of motor efficiency. Verify that the quoted motor's efficiency class applies to the exact frame, pole count, frequency, and rated power.
Enclosure protection IEC 60034-5 Degrees of protection provided by integral motor enclosures Defines the motor enclosure IP classification, such as IP55 or IP66. Specify the IP rating according to dust, water, washdown, and outdoor exposure.
Variable-frequency-drive operation Drive and motor compatibility requirements Confirm inverter-duty insulation system, permissible speed range, bearing-current protection, cooling performance, and minimum switching-frequency requirements A line-frequency motor may not be suitable for the full speed range, cable length, or voltage stress produced by a VFD. Request a written motor-VFD compatibility statement when a drive will be used.
Machinery electrical safety IEC 60204-1 where applicable Electrical equipment of machinery, including protective bonding, isolation, control circuits, and verification Motor selection must be integrated with the complete machine electrical system. Coordinate motor protection, disconnecting means, emergency-stop functions, and control-panel design with the machine assessment.
Hazardous-area operation IEC 60079 series where applicable Requirements for equipment used in explosive atmospheres A standard IP55 motor is not automatically suitable for areas containing flammable gas, vapor, dust, or fibers. Use an appropriately certified hazardous-area motor and verify the zone, gas or dust group, temperature class, and certification.
5. Safety and Installation Requirements
Overload protection Thermal or electronic motor overload relay Set according to the motor nameplate full-load current and the applicable installation rules; do not simply use the nominal 22 kW rating Correct overload protection limits damage caused by sustained overcurrent, stalled operation, or excessive mechanical load. Coordinate overload settings with the starter, VFD, short-circuit protection, and motor thermal capability.
Short-circuit protection Fuse or circuit-breaker protection Selection must consider prospective fault current, starting current, interrupting capacity, cable rating, and local electrical codes Short-circuit protection protects the supply system and wiring but does not replace motor overload protection. Have the protective-device coordination verified by a qualified electrical professional.
Earthing and bonding Protective conductor connection Connect the motor frame to the protective earth using a properly sized conductor and approved termination Effective bonding reduces electric-shock risk and provides a low-impedance fault path. Verify continuity and torque all earth and terminal connections during commissioning.
Isolation and lockout Visible or lockable disconnecting device Provide a means to isolate the motor and associated energy sources before inspection or maintenance Motors can restart automatically and VFD DC-link capacitors can retain hazardous voltage after disconnection. Apply the site's lockout/tagout procedure and observe the manufacturer's discharge waiting time.
Mechanical guarding Coupling, shaft, fan, and belt protection Guard rotating parts and prevent access to nip points and exposed couplings Electrical compliance does not eliminate mechanical hazards from rotating equipment. Inspect guards before operation and after maintenance.
Vibration and alignment Installation quality control Check soft foot, shaft alignment, foundation stiffness, coupling condition, and baseline vibration after installation Misalignment and imbalance increase bearing loads, noise, energy use, and failure probability. Record commissioning measurements for future predictive maintenance.
Thermal conditions Ambient temperature, altitude, and cooling Derating may be required above the motor's rated ambient temperature or installation altitude; reduced-speed VFD operation may reduce self-cooling Insufficient cooling can shorten insulation and bearing life even when the motor is not overloaded electrically. Confirm derating curves and select separately powered ventilation when required.
6. Final Selection Recommendation
Best general-purpose choice IE3, IP55, S1, four-pole, correctly mounted Appropriate for many standard indoor applications with moderate operating hours and stable load Balances purchase cost, availability, efficiency, and ease of replacement. Choose only after confirming the actual supply, load torque, starting method, mounting, and environmental conditions.
Best high-utilization choice IE4 with verified drive compatibility where applicable Recommended for approximately 4,000–8,000 operating hours per year when the efficiency premium has an acceptable payback period Lower losses can reduce long-term energy costs and operating temperature. Use a life-cycle cost calculation based on measured load and the current electricity tariff.
Minimum quotation requirement Like-for-like technical quotation Require identical power, voltage, frequency, pole count, efficiency class, mounting, IP rating, duty, insulation class, options, delivery terms, and warranty terms Without a common specification, the lowest quotation may simply exclude necessary features. Select the motor with the lowest verified total cost that satisfies all performance, compliance, reliability, and safety requirements.
Note: Prices, efficiencies, energy use, lead times, and maintenance allowances are non-brand-specific planning benchmarks, not supplier quotations. Confirm final values using certified technical data, local electrical regulations, the driven-equipment duty point, and site-specific operating conditions.

FAQS

How should I choose a 22 kW electric motor?

Start with the machine’s real workload, not power rating alone. Check running torque, starting torque, duty hours, and load changes. Paper ratings can mislead.

How does motor speed affect torque?

Torque follows T = 9550P/n. At 1,500 rpm, a 22 kW motor produces about 140 Nm. At 3,000 rpm, it produces about 70 Nm.

Can gear reduction increase shaft torque?

Yes, gear reduction can increase output torque. Include gear losses in your calculations. Do not rely on nominal speed alone.

Which electrical details need checking?

Match voltage, frequency, phase arrangement, and available starting current. Confirm voltage tolerance and control-system compatibility. Small mismatches can cause major operating problems.

What installation conditions can affect motor selection?

Measure the mounting area and allow room for cooling air. Consider dust, moisture, heat, altitude, and corrosive vapors. A clean room may still contain harmful fine dust.

Should I use direct starting, a soft starter, or speed control?

Direct starting may suit a strong supply and stable load. A soft starter can reduce mechanical shock. Speed control improves adjustment but requires correct settings and cable selection.

What protection and monitoring are useful?

Add overload protection and temperature monitoring for demanding duty cycles. Record current, vibration, bearing temperature, and unusual noise. Trends matter more than one reading.

How should maintenance be planned?

Inspect terminals for looseness and check alignment after the initial operating period. Set lubrication intervals according to speed, load, bearings, and environment. Generic schedules may be wrong.

Is oversizing the safest choice?

Not always. Excessive oversizing may reduce efficiency and worsen control. Leave practical margin, then recheck the assumptions with a qualified engineer. The perfect choice is rare.

Conclusion

Choosing the right 22 kW electric motor requires more than matching the power rating. Start by reviewing key specifications such as rated voltage, frequency, speed, torque, current, duty cycle, and starting performance. The motor should suit the application’s load characteristics, operating environment, and required output. Consider whether a standard, high-efficiency, or specialized motor type is appropriate, and confirm the required efficiency class and protection rating for conditions involving dust, moisture, heat, or frequent cleaning.

Installation and operation requirements are equally important. Check mounting dimensions, available space, ventilation, cable connections, and compatibility with soft starters or variable frequency drives. Evaluate maintenance access, expected service intervals, spare parts availability, and monitoring needs. When comparing suppliers, look beyond the purchase price by considering energy consumption, installation expenses, reliability, warranty terms, and total ownership cost. Finally, verify that the selected 22 kW electric motor complies with applicable electrical standards, safety requirements, and site regulations before installation and commissioning.
